Product | MGS101-07 |
Dimensions | 325.0(L) x 197.0(W) x 25(H)mm |

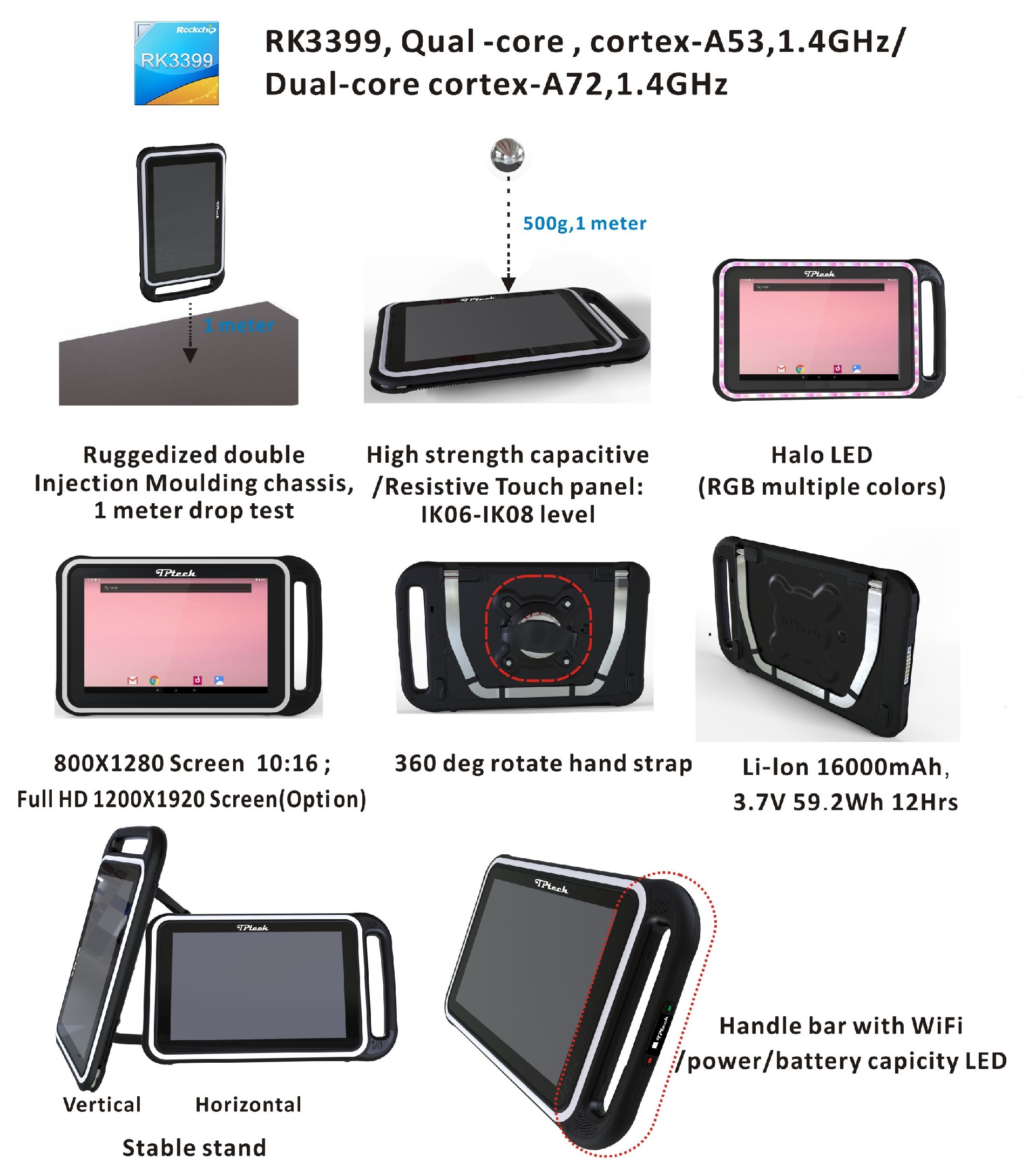

CPU | RK3399, Qual-core cortex-A53, 1.4GHz/Dual-core cortex-A72, 1.4GHz |

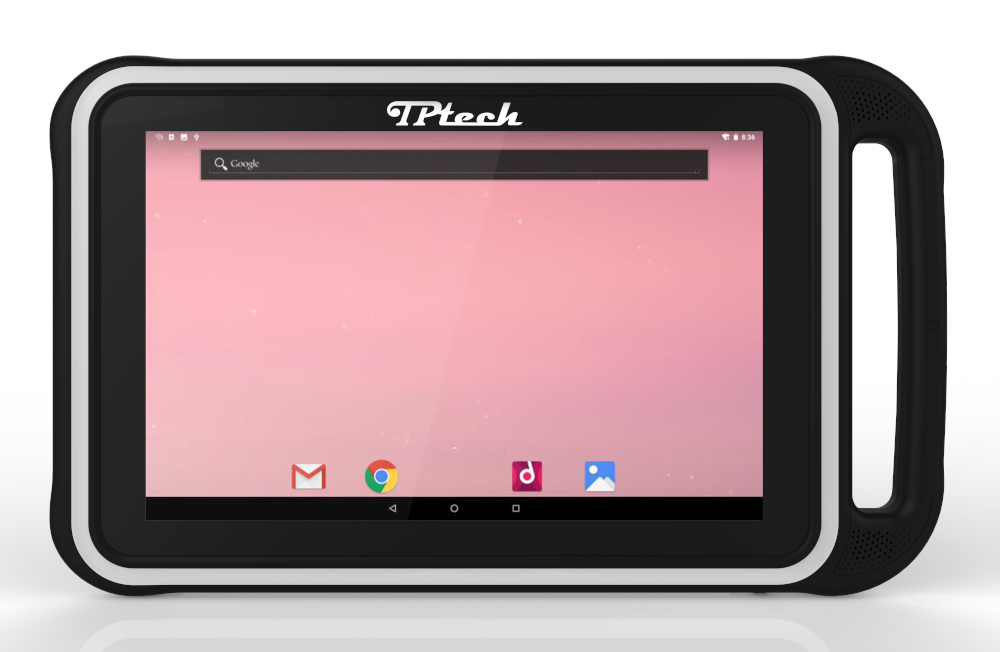

LCD panel | 10.1” Screen(MiPi), Resolution 800X1280 WXGA; 10:16 Aspect Ratio, Luminance 280CD/m2 |
Touch panel | Capacitive 10 Multi touch panel, interface I2C, IK07 hardness |
Memory | 2GB LPDDR4-On board BGA memory, support 4GB to 8GB |
Storage | 32GB EMMC5.0, up to 128GB |
Card Reader | Support Secure digital MSD card 8GB~512GB |
Front camera | 500MP+AF, MiPi interface (Option) |
Wi-Fi | IEEE 802.11a/b/g/n/ac Wireless card (Intel 3168 module) |
Light bar | RGB LED,UART interface,5V operation voltage (Option) |
Speaker | 2 x speaker, rated resistance 8Ω, rated power 0.6W, sensitivity 92dB/5cm |
G-sensor | Automatic screen orientation 3 axis |
Rear I/O | 1*mini USB (Host); 1*Micro SD; 1*3.5mm audio Jack; 1*mini HDMI for Fast Ethernet (10/100); 1*DC Jack; |

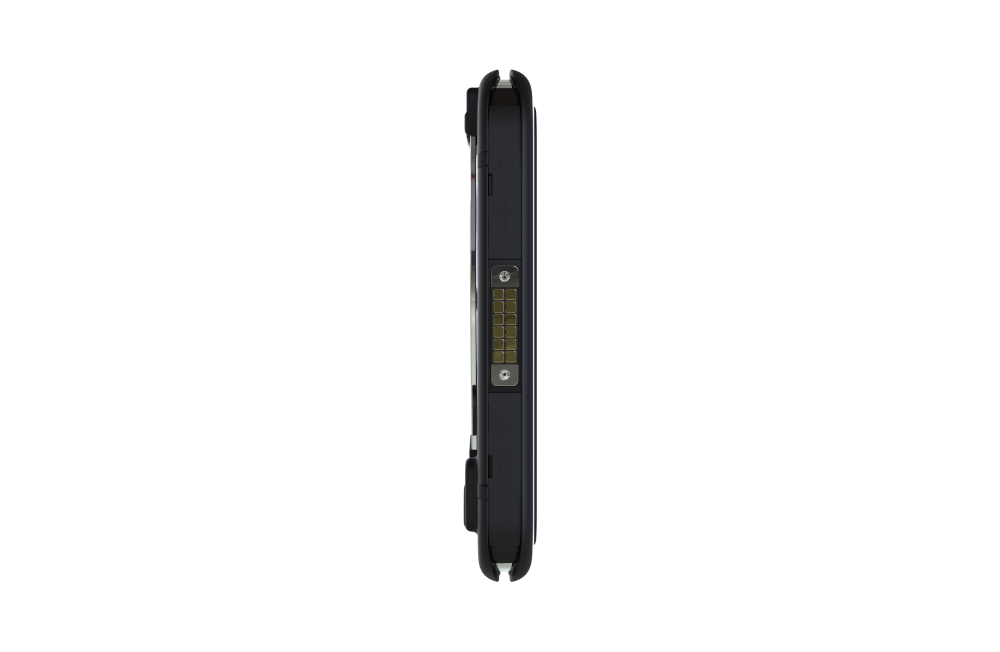

Pogo connector | 2x4pins, with DC IN; 2x6pins, with DC IN, LAN (10/100M) (Option) |
Battery | Li-lon 16000mAh/3.7V 59.2Wh 12Hrs |
Reset function | Hall IC switch on handle (EC Control)-External magnet action |
Power button | Power button*1 |
Operating System | Android 9.0 |
Regulations | FCC；SAR; CE; CCC |
Weight | Around 1.52Kg (with 16000mAh,3.7V battery) |
RFID Tag | 60.0x12.5x1.0mm, with ground plane, white synthetic label, EPC class 1 gen2v2, 866~868MHz(EU) , 902~928MHz(US), IQ 150, Omni-ID (Option) |
VESA mount | 75mmx75mm mounting hole (Option) |

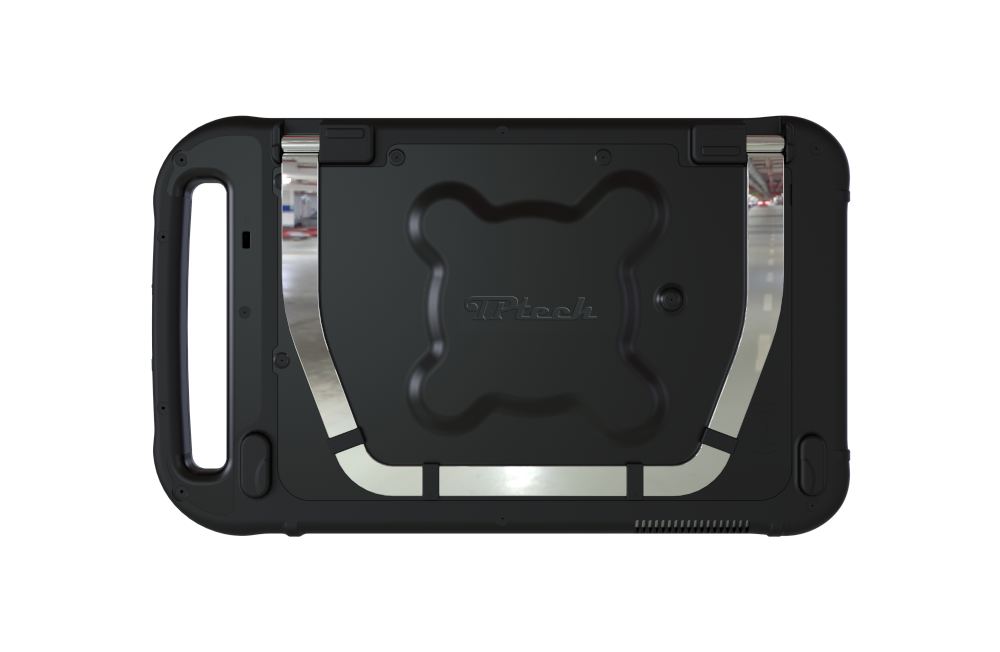

Hand strap | Hand strap for rotating and handle, diameter 60mm stainless steel plate, 95x95mm plastics with 75x75mm VESA hole (Option) |
I/O cover | Three kinds of optional I/O cover： 1. Rubber cover with Logo without button hole (Default) 2. ABS cover with screws with button hole (Option) 3. ABS cover with screws without button hole (Option) |
Panel protector | PET film,251.9x163.4x0.125mm (Option) |
