Component | MGS101-08 |
Dimension | 325.0(L)x197.0(W)x39.7(H)mm |
Board | 8th Generation Intel Core i5-8200Y, Dual Core, 1.30-3.90GHz, TDP 5W 8th Generation Intel Core m3-8100Y, Dual Core, 1.10-3.40GHz, TDP 5W (Option) |

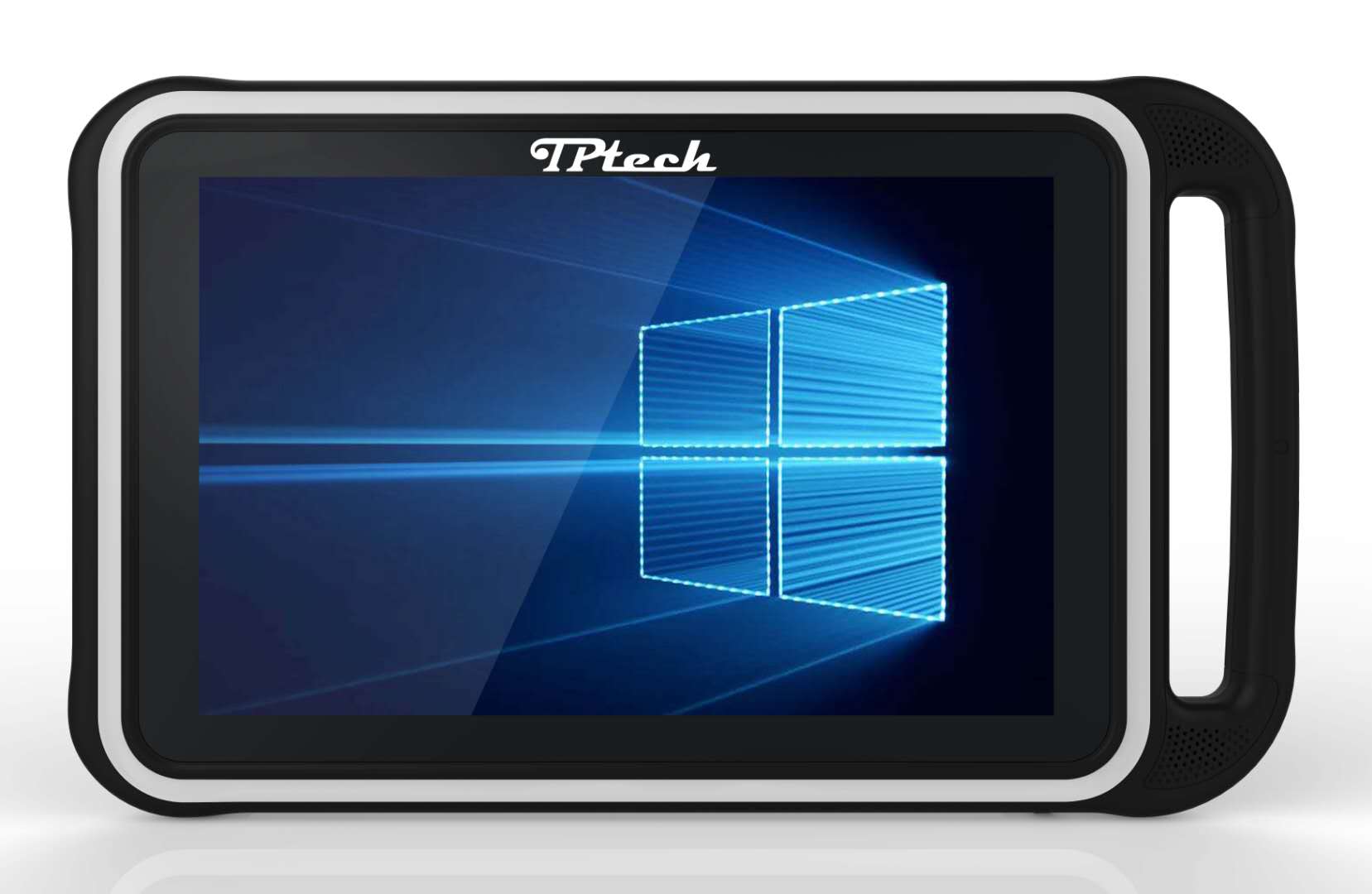

LCD panel | 10.1” Screen(MiPi), Resolution 1200X1920 WUXGA; 10:16 Aspect Ratio, Luminance 280CD/m2 ; 10.1” Screen(MiPi), Resolution 800X1280 WXGA; 10:16 Aspect Ratio, Luminance 280CD/m2 (Option) |
Touch panel | Capacitive 10 Multi touch panel, interface I2C, IK07 hardness |
Memory | 8GB LPDDR3 1866MHz On board 178 ball memory module |
Storage | 128GB m-SATA SSD, Support to 1TB |
Card Reader | Support Secure digital Micro SD card 8G-512GB |
Front camera | 500MP +AF,MiPiinterface (Option) |
Wi-Fi | IEEE 802.11a/b/g/n/ac Wireless card (Intel 3168 module) |
BT | Bluetooth 4.2 support (Option) |
Light bar | RGB LED, UART interface, 5V operation voltage (Option) |
Speaker | 2x speaker,rated resistance 8Ω, rated power 0.6W,sensitivity 92dB/5cm |
G-sensor | Automatic screen orientation 3 axis |
Fan | Dimension 45*45*5mm, working voltage5V, revolution speed 5200RPM, noise 27dB |
Rear I/O | 1*mini USB(Host);1*Micro SD;1*3.5mm audio Jack;1*mini HDMI for Fast Ethernet(10/100); 1*DC Jack |

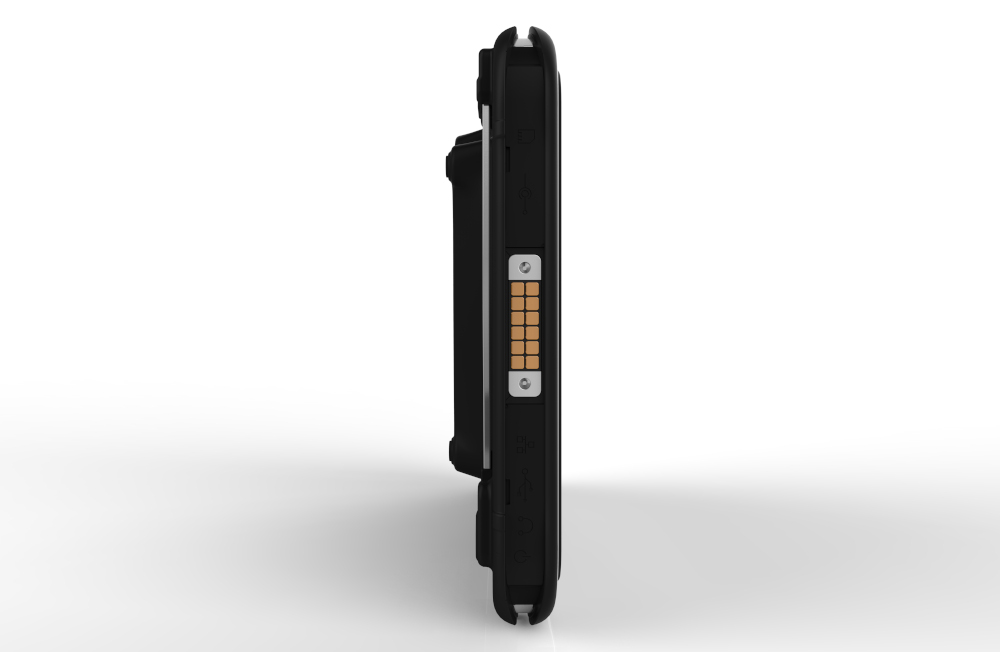

Pogo connector | 2x4pin, with DC IN;2x6pin, with DC IN, LAN(10/100M) (Option) |
Battery | Li-Lon 16000mAh, 7.4V, 118.4Wh,18Hrs;Li-lon 8000mAh, 7.4V, 59.2Wh, 9Hrs (Option)Li-Lon 12000mAh, 7.4V, 88.8Wh, 13Hrs(Option) |
Reset function | Hall IC switch on handle(EC Control)-External magnet action |
Power button | Power button*1 |
Operating System | Windows10 Home/Pro, 32/64 bits |
Regulations | FCC; SAR; CE; CCC |
Weight | 1.8Kg (16000mAh,7.4V); 1.66Kg (12000mAh,7.4V) (Option); 1.52Kg (8000mAh,7.4V) (Option) |
RFID Tag | 60.0x12.5x1.0mm, with ground plane, white synthetic label, EPC class 1 gen2v2, 866~868MHz(EU) , 902~928MHz(US), IQ 150, Omni-ID (Option) |
VESA mount | 75mmx75mm mounting hole; Only for 8000mAh battery (Option) |

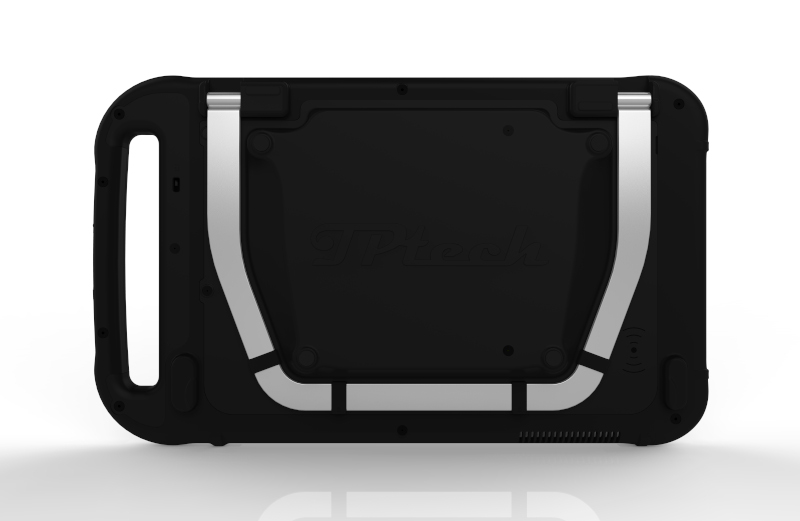

Hand strap | Hand strap for rotating and handle, diameter 60mm stainless steel plate, 95x95mm plastics with 75x75mm VESA hole (Option) |
I/O cover | Three kinds of optional I/O cover： ABS cover with screws button hole (Default) Rubber cover with Logo without button hole(Option)ABS cover with screws without button hole (Option) |
Panel protector | PET film , 251.9*163.4*0.125mm (Option) |
