| Medical Thermometer System Specification | ||
| Product | MTS054-02 | |
| Dimension | 107(L)x47.0(W)x156.0(H)mm | |

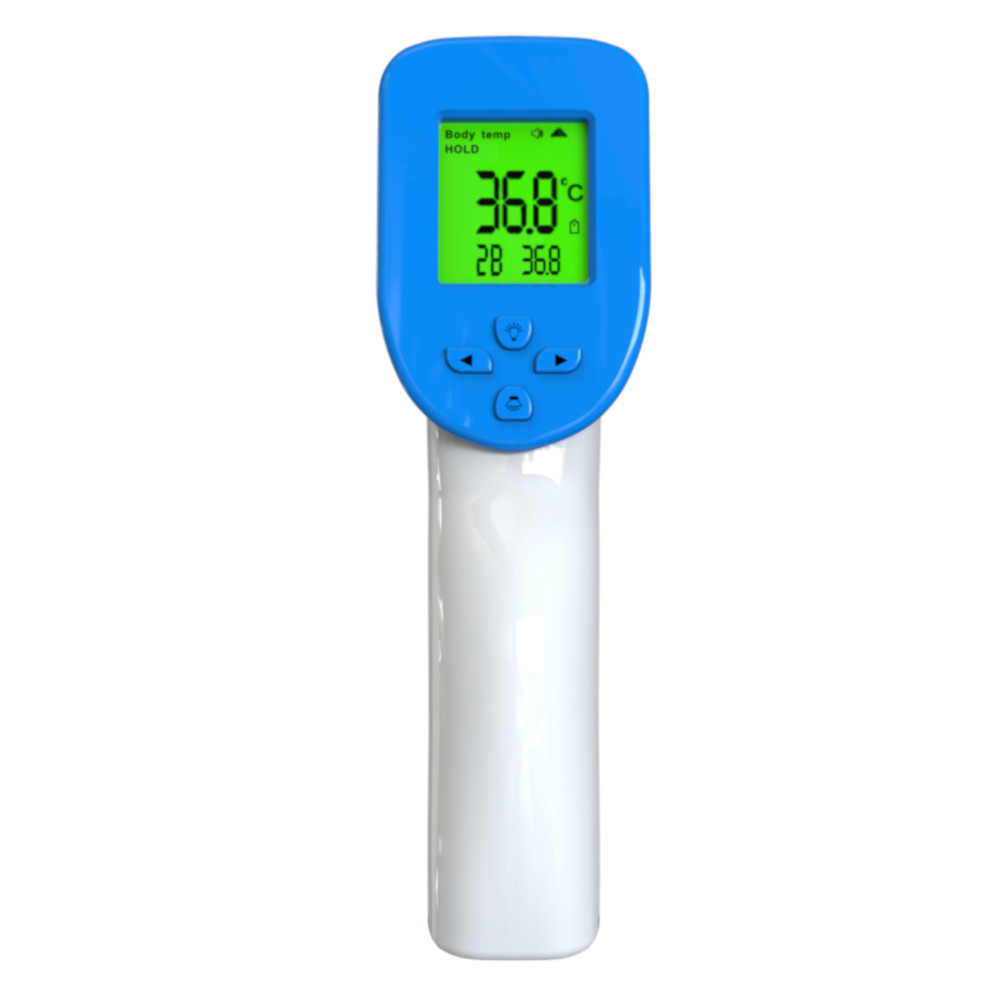

| Display screen | TN display, 25.5x28.5mm view area, 6 O‘clock view angle, Red/ Yellow/ Green back light warning | |
| Measuring mode | Body temperature/ surface temperature | |
| Measuring range | Body temperature: 33.0~43°C; (display screen shown "Lo" when lower than 33.0°C, and shown "Hi" when higher than 43°C ) Surface temperature: 0~60.0°C; (display screen shown "Lo" when lower than 0°C, and shown "Hi" when higher than 60.0°C ) | |
| Measuring distance | 1~3cm | |
| Measuring accuracy | 35.0~42.0°C ±0.2°C in scope | |
| 35.0~42.0°C ±0.3°C out of scope | ||
| Accuracy of display | 0.1°C | |
| Temperature unit | °C/ °F | |
| Automatic shutdown | About 15 Seconds | |
| Measuring time | 1 Second | |
| Memory function | Automatically store the last 32 groups of measuring data | |
| Buzzer Function | beep for measurement Alarm when higher than 38.0°C | |
| LCD backlight | Body temperature | Below 33°C: Red backlight, shown "Lo" and three sound alarm |
| 33.0~37.4°C: Green Backlight | ||
| 37.5~37.9°C: Yellow Backlight | ||
| 38.0~43°C: Red Backlight ,three sound alarm | ||
| Above 43°C Red Backlight, shown "Hi" and three sound alarm | ||
| Surface temperature | 0~60°C: Green Backlight | |
| Below 0°C: Red backlight, shown "Lo" and three sound alarm | ||
| Above 60°C Red Backlight, shown "Hi" and three sound alarm | ||
| Power Voltage | DC 3V(two triple A battery), display screen flash a low voltage symbol when battery voltage is lower than 2.4±0.2V | |
| Button | Backlight button; Sound switch button; Left button (view historical data); Right button (view historical data) | |
| Trigger | Measurement button | |
| Service life | 5 years | |
| Drop test criteria | 1.0 meter height freedom drop test | |
| Operation ambient temperature | 16°C-40°C, display screen shown” Err” when ambient temperature range is exceeded | |
| Storage temperature | -20°C-55°C | |
| Product weight | 100g (Without batteries) | |
| Regulations | CE/ FCC/ FDA | |
