Component | Description |

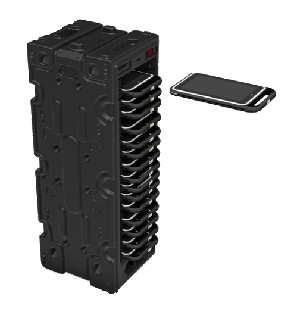

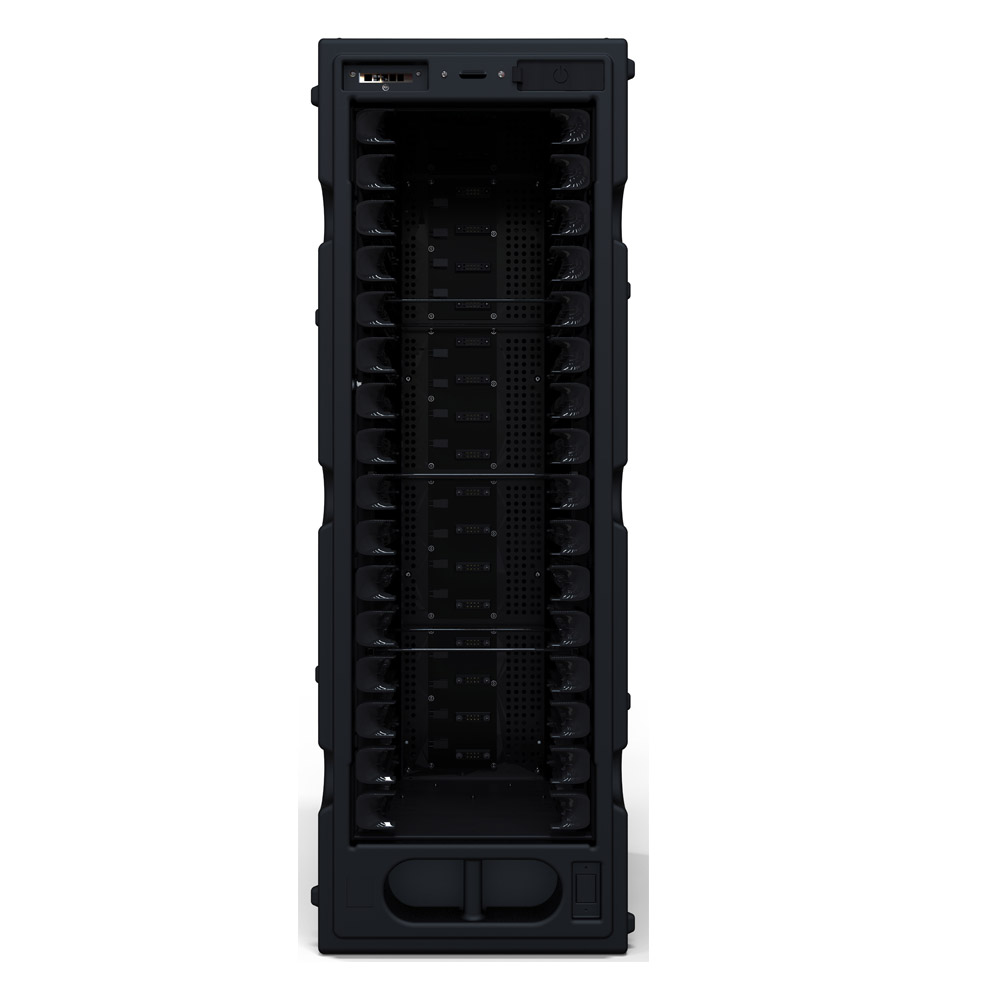

Sliding Rail | 16 Bays |
Dimensions | 990（H）*387.5（L）*350（W）mm |
Chassis | Robust case, Black |
Chipset | MCU, PIC18F26K22, up to 64MHz, 3896B SRAM, 1024B EEPROM, 64KB Flash |
IC Switch | TCA9548A |
PSU AC Input | 90～132VAC/180～264VAC, select by switch |
PSU DC Output (*16 Pogo) | Total output:12V, 66A, 400W*2; |
Single port output:12V, 2A, 24W | |
Pogo pin *16 | 8 pin Pogo: DC IN*2pins |
Rear I/O | AC Inlet (with 10A Fuse) |
System fan | Dimension 92*92*38mm, working voltage 12V, revolution speed 5000RPM, noise 55dB(A) *2PCS |
Top fan | Dimension 50*50*10mm, working voltage 5V, revolution speed 5500RPM, noise 32.3dB(A) *1pcs |
Electronic Lock | DC12V, 0.35A, stroke 3mm, Force >=850gf (Option) |
Power button（With LED） | 32.5x25.5mm, 10A/110V AC, 220V AC, with red LED |
Thermal sensor | Environment Measurement Range: -10°C to 125°C |

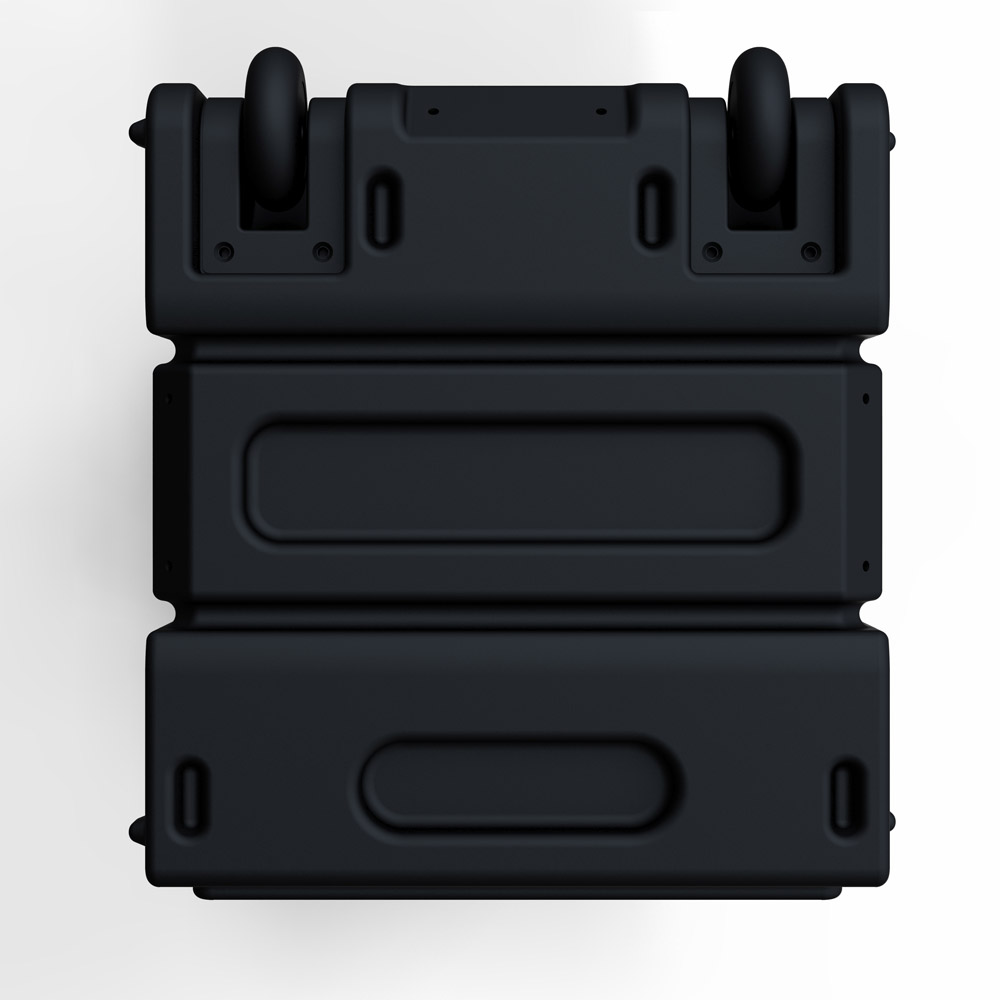

Spring Roller *2 | 63.5(W)x 82.8(L)x 82.8(H)mm, φ75mm load-bearing 70Kg*2 |
Guide rail *40 | Guide rails with front roller and latch |
Security cable | Security cable，φ4.0x1070x8mm |
Net Weight | Around 30kg |
Certification | CE; FCC |
Environment Temperature | 0~40 °C |
